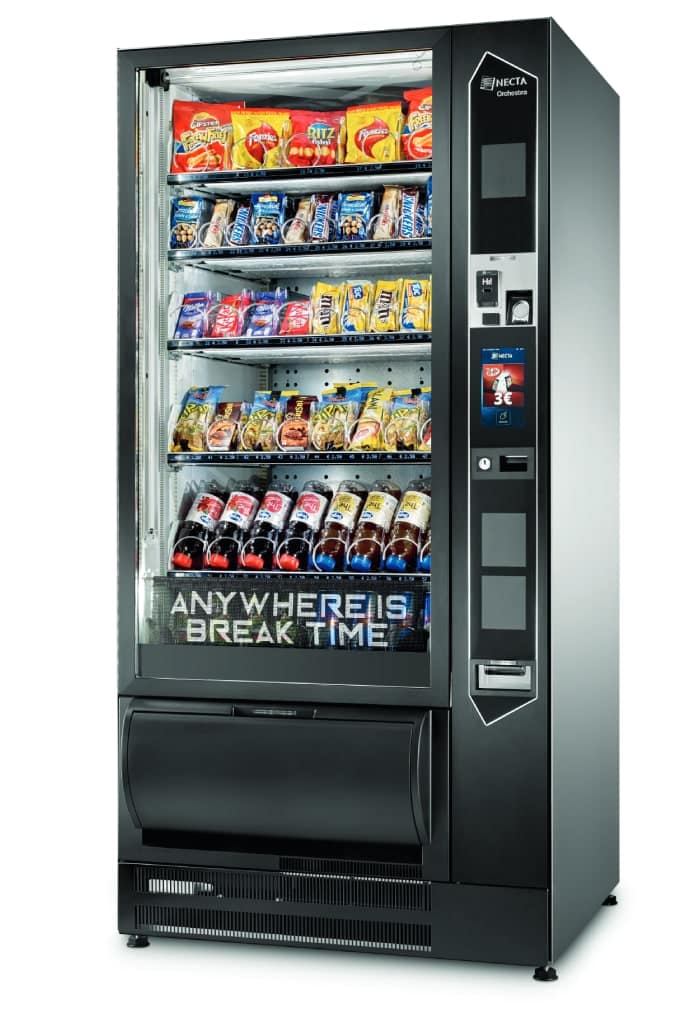

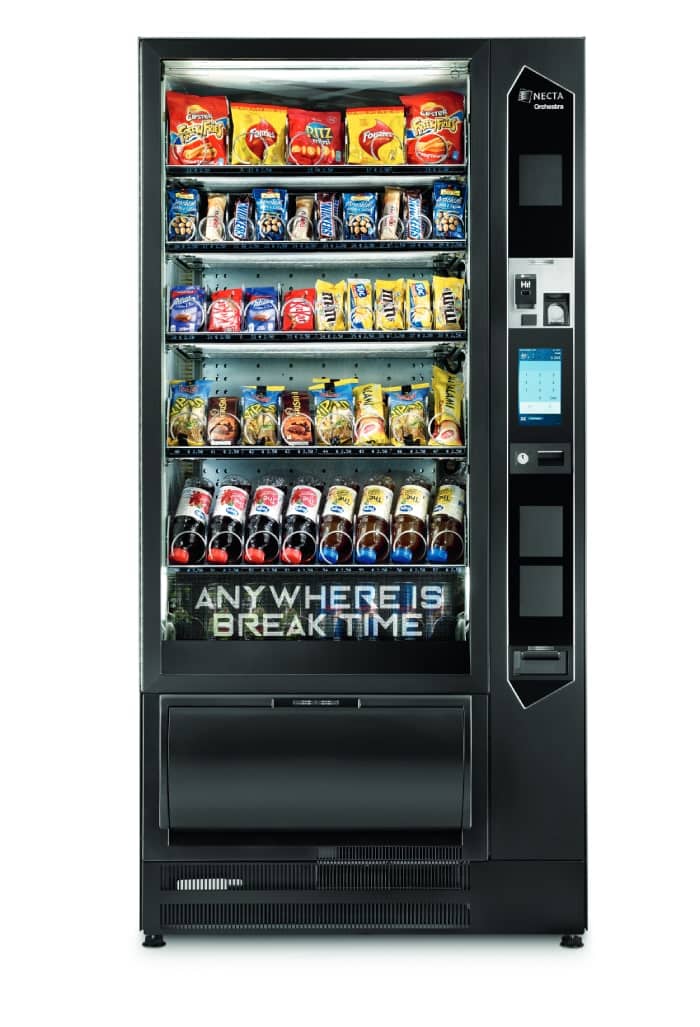

Orchestra Touch completes the Orchestra 8 spirals range with a new touch version.
Among the other innovations, such as the transparent, modular, and reconfigurable VisioShop trays and the high levels of energy efficiency, this model features an intuitive and simple touch selection area. Product selection and access to nutritional facts are easy and immediate. The consumer can browse through the promotions and buy more than one item with a single purchase while the operator can create a tailor-made offer for each location.
Features
Dimensions
- Height: 1830 mm
- Width: 900 mm
- Depth: 830 mm
- Weight: 300 kg
Power:
- Voltage: 230 V
- Frequency: 50 Hz
Specs:
- User Interface: Touch Selection
- Protocol: Executive – MDB – BDV
- Temperature: Stratified
- Elevator: Softened
- Configuration: Snacks + Food + Cans & Bottles / Snacks + Food / Food / Cans & Bottles
Capacity:
- Number selection: 38+
- Num trays: 6
- Max num tray: 8
- Product Capacity: 438
Energy Efficiency:
- The whole Orchestra range is equipped with a compact compressor and evaporator, whose efficiency allows to reduce the pull-down time inside the cell.
- Energy consumption can be reduced thanks to the extremely efficient insulation due to the latest generation foaming process, eliminating any thermal bridge between the cell to the outside.
- The window benefits from a new insulation technology: the core is made of PVC and the external frame is in aluminium. Also, the insulation of the delivery bin has been enhanced, thanks to a new internal PVC structure.
Features:
- Industrial Touch screen LCD 800×480 pixel, format 16:9 in portrait position.
- Wide viewing angle of 60°/85° with a brightness level of 400cd/m².
- A reliable screen which can last more than 50.000 hours.
- Possibility to have combined selection.
- Possibility to set promotions, to display spot, slide show, and complete nutritional information of the selected item.
- The whole Orchestra range benefits of the Visio shop tray performances.
- Visio shop is a transparent and refined tray, the base and sides are made of transparent and long-lasting material that allows the passage of the light. Consequently, the products inside the machine benefit from improved visibility.
- Thanks to a metallic frame, it combines lightness and sturdiness: it can support up to 53 kg of load, eliminating any tray bending.
- Visio shop is modular and easily re configurable: the width of each selection can be changed according to the packaging size of the displayed product (up to 10 single selections).
